UR5097 Thermally Conductive Polyurethane Potting Compound Thumbnail

UR5097

Thermally Conductive Polyurethane Potting Compound

This thermally conductive Polyurethane encapsulation and potting compound is a two part system with a black finish. It exhibits excellent thermal conductivity making it ideal for applications where heat dissipation is required.

Product Codes

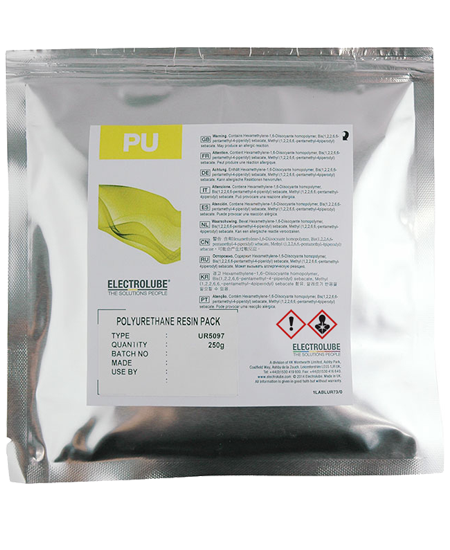

250g Resin Pack - UR5097RP250GE
5kg Kit - UR5097K5K
10kg Kit - UR5097K10K
25kg Kit - UR5097K25K

Product Description

UR5097 thermally conductive polyurethane potting compound exhibits excellent thermal conductivity making it ideal for applications where heat dissipation is required.

The cured resin is resistant to a wide or cycling temperature range making it an ideal choice for applications where thermal shock is a potential risk to the electronics, while it is also flame retardant to UL94 certification.

Its low water absorption offers exceptional protection in the presence of water or against moisture in humid environments.

For more information please refer to the TDS, our technical support team are also on hand to discuss your application requirements further

Key properties

  • Flame retardant, certified to UL94 V-0
  • High thermal conductivity
  • Low water absorption
  • Excellent electrical properties
  • Does not contain abrasive fillers and has good flow characteristics; low wear on dispensing machinery
  • RoHS Compliant
