UR5044 Soft / Digoutable, Flame Retardant Polyurethane Resin Thumbnail

UR5044

Soft / Digoutable, Flame Retardant Polyurethane Resin

Flame retardant polyurethane resin which is UL94 approved. It is soft enough to dig-out for units requiring rework such as prototypes and is flexible through a wide temperature range. May be a good alternative to a Silicone Resin.

Product Codes

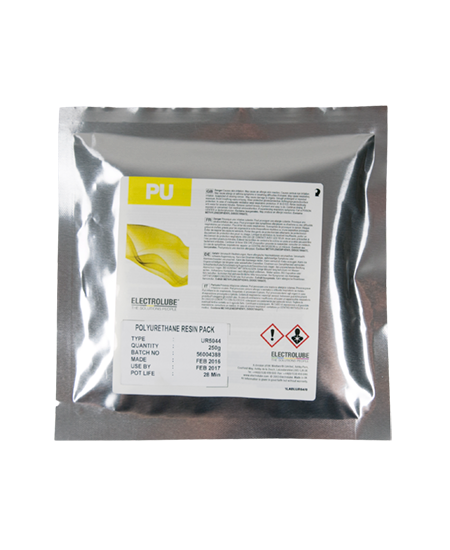

250g Resin Pack - UR5044RP250GE
1kg - UR5044K1K
5kg - UR5044K5K
10kg - EUR5044K10K

Product Description

UR5044 flame retardant polyurethane resin is a UL94 approved two part system has been developed for potting and encapsulation of electronics. Once cured it has a dark blue finish and is soft enough that it can be dug out if required for rework and repair.

Its flexibility and its digoutable characteristics make it an ideal compound for use in prototype electronics, or potted units which may require rework or repair within their life cycle. Its excellent flexibility is maintained even at temperature extremes as low as -70°C and up to 120°C  so is ideal for applications where the temperature cycles. The softness and flexibility combined with the temperature range makes it a good alternative to silicone resin systems.

UR5044 also has excellent resistance to water making it a good choice for marine or outdoor applications. It also has good thermal conductivity so may be used for devices requiring thermal management.

For more information please refer to the TDS, our technical support team are also on hand to discuss your application requirements further

Key properties

  • Flame retardant, certified to UL94 V-0
  • Soft, re-workable resin (can be 'dugout')
  • Flexible even at temperature extremes
  • Excellent low temperature performance to -70°C
  • Ideal for prototype circuitry, silicone replacement, and control units
  • RoHS Compliant
