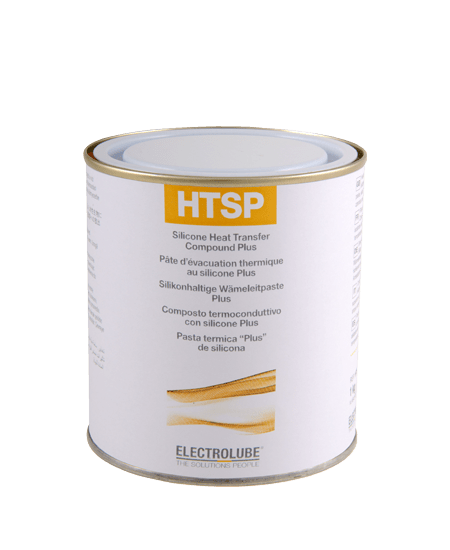

HTSP Silicone Heat Transfer Compound Plus Thumbnail

HTSP

Silicone Heat Transfer Compound Plus

HTSP provides the ultimate in thermal conductivity together with the very wide temperature range obtained by using silicone base oils.

Product Codes

HTSP35SL - 35ml Syringe
HTSP50T - 50ml Tube
HTSP100T - 100ml Tube
HTSP830G - 830g Cartridge
HTSP01K - 1kg Bulk
HTSP10K - 10kg Bulk
HTSP25K - 25kg Bulk

Product Description

HTSP Silicone Heat Transfer Compound Plus is a modified ‘Plus’ version of Electrolube’s successful HTS which provides the ultimate in thermal conductivity together with the very wide temperature range obtained by using silicone base oils. The exceptional properties obtained from HTSP are due to the novel use of various metal oxide (ceramic) powders. These materials are electrically insulative to ensure that leakage currents can not be formed if the paste should come into contact with other parts of the assembly.

As with all thermal interface materials, we would always encourage stringent testing before selecting a material for your application. For further information please refer to the product TDS, or get in touch with our Technical Support Team who are always on hand to ‘Talk Solutions’

We also have a wide range of articles to help you select and apply the right material for your application in our knowledge centre.

Key properties

  • Superior thermal conductivity even at high temperatures 3.0 W/m.K
  • Excellent non-creep characteristics
  • Wide operating temperature range -50°C to +200°C
  • Low evaporation weight loss
