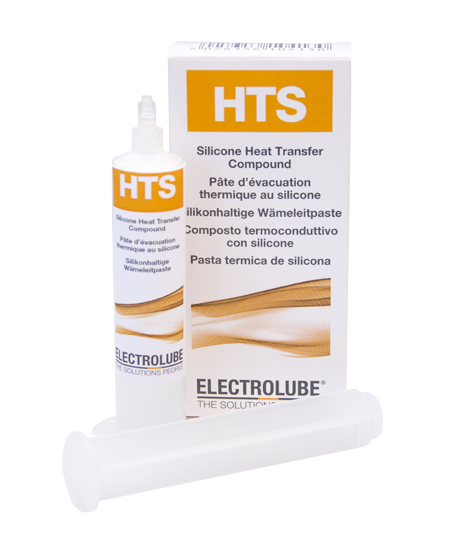

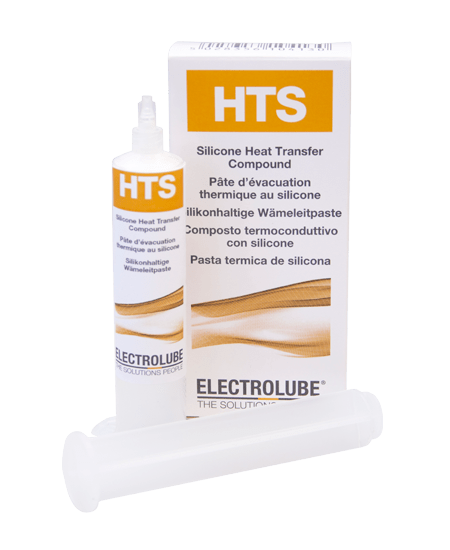

HTS Silicone Heat Transfer Compound Thumbnail

HTS

Silicone Heat Transfer Compound

Silicone Heat Transfer Compound is a metal oxide filled silicone oil providing an extremely efficient and exceptionally thermally conductive compound which will operate over a wide temperature range.

Product Codes

2ml Syringe - HTS02S
10ml Syringe - HTS10S
35ml Syringe - HTS35SL
100ml Tube - HTS100T
700g Cartridge - EHTS700GS
Bulk 1kg - HTS01K
Bulk 25kg - HTS25K

Product Description

Silicone Heat Transfer Compound is a metal oxide filled silicone oil providing an extremely efficient and exceptionally thermally conductive interface material which will operate over a wide temperature range. Electrolube Heat Transfer Compound is recommended where the efficient and reliable thermal coupling of electrical and electronic components is required or between any surface where thermal conductivity of heat dissipation is important.

Key properties

  • Excellent non-creep charactistics
  • Vibration stable, designed for gap filling applications
  • Thermal conductivity even at high temperatures: 0.90 W/m.K
  • Wide operating temperature range: -50°C to +200°C
  • Low in toxicity and economical in use
  • Low evaporation weight loss
