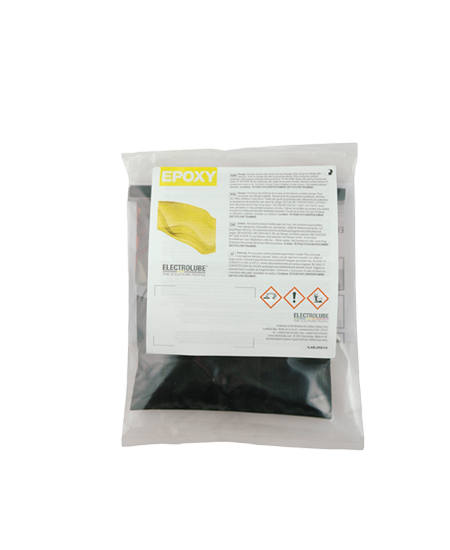

ER2183 Thermally Conductive Epoxy Potting Compound Thumbnail

ER2183

Thermally Conductive Epoxy Potting Compound

ER2183 is a thermally conductive epoxy resin meets UL94 flame retardancy using clean technology which results in relatively low toxicity fumes and low smoke emission.

Product Codes

250g Resin Pack - ER2183RP250G
500g Resin Pack - ER2183RP500G
1kg Kit - ER2183K1K
5kg Kit - ER2183K5K
25kg Kit - ER2183K25K

Product Description

ER2183 Thermally conductive epoxy potting compound is an epoxy resin which meets UL94 flame retardancy using clean technology which results in relatively low toxicity fumes and low smoke emission.

It is a low viscosity alternative to ER2220 system which is ideal for potting and encapsulating electronics or components with limited spacing and where thermal dissipation is required. It has a wide operating temperature range and can be used in a variety of potting and encapsulation applications.

For more information please refer to the TDS, our technical support team are also on hand to discuss your application requirements further.

Key properties

  • Thermally Conductive Epoxy
  • Low viscosity alternative to ER2220: 5000mPa s
  • High thermal conductivity; 1.25W/m.K
  • Easy to mix, uses non-abrasive fillers
  • Wide operating temperature (-40°C to 130°C)
  • Meets UL94
  • RoHS Compliant
