UVCLX

UV Cure Conformal Coating Xtra

UVCLX is part of the new generation of UV Cure Conformal Coatings developed by Electrolube to offer the highest levels of protection whilst maintaining a fast processing time.

Product Codes

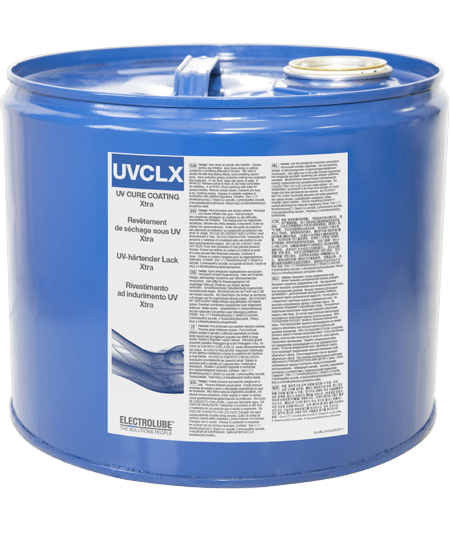

5L Bulk - UVCLX05L

Product Description

UVCLX UV Cure Conformal Coating Xtra is part of the new generation of UV Cure Conformal Coatings developed by Electrolube to offer the highest levels of protection whilst maintaining a fast processing time. Applied via a selective coating machine, UVCLX builds on the speed of a traditional UV Cure Coating, being touch dry after just a short exposure to the correct wavelength of UV light. A full cure is guaranteed in less than 24 hours by virtue of the secondary chemical cure mechanism. The chemical cure ensures that even shadowed areas are fully cured in a matter of hours. This is in stark contrast to other traditional UV Cure Coatings that can require weeks for a complete cure; some shadowed areas will even remain uncured. UVCLX therefore ensures reduced work in progress times.

UVCLX is optimally applied at between 200-350μm achieving excellent edge coverage, even over sharp components. This ensures that UVCLX achieves the highest levels of protection, even during temperature cycling and thermal shock out-performing other UV coatings on the market even in the harshest environments. UVCLX offers exceptional performance due to its hydrophobic nature which gives it excellent protection from moisture, salt mist and even full immersion for short periods. This immersion period can be extended by applying the coating more thickly.

UVCLX is an opaque green coating, camouflaging components and PCB tracks for more sensitive designs.

For more information please see the product TDS or contact our technical support team.

Key properties

  • UV Cure Conformal Coating with full cure in under 24 hours
  • Optimally applied between 200-350μm for ultimate protection
  • Excellent coverage, even over difficult geometries
  • Thermal Shock Resistant
  • Hydrophobic - Excellent moisture / water resistance
  • UL746 approved (E138403)
  • Good Chemical Resistance
  • Abrasion resistant
  • Green Colour - masks PCB and Components
  • RoHS Compliant & REACH Compliant
