TBS

Thermal Bonding System

Thermal Bonding System is a two part epoxy bonding system which utilises metal oxides to provide excellent thermal conductivity whilst being electrically insulating.

Product Codes

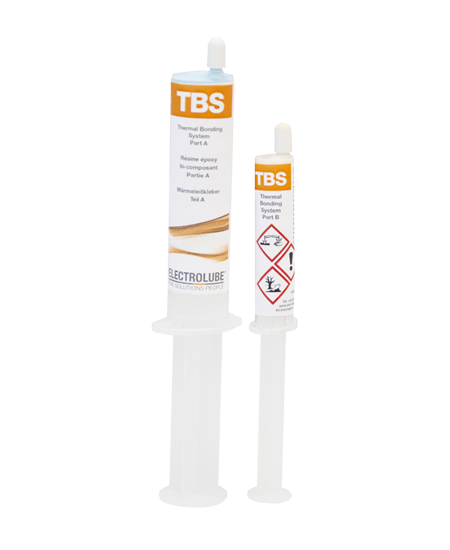

20ml Syringe - TBS20S

Product Description

Thermal Bonding Compound is a two part epoxy bonding system which utilises metal oxides to provide excellent thermal conductivity whilst being electrically insulating. It is especially useful in the manufacture of heatsink assemblies where ‘piggy back’ arrangements are applied and where the manufacture design of heat sinks does not allow for welding or brazing techniques to be employed due to complexity or geometry of the fins. TBS is also ideal for use as a bonding medium in surface mounting assemblies.



Key properties

  • Two part epoxy bonding system
  • Very high bond strength
  • High thermal conductivity: 1.10 W/m.K
  • Eliminates need for mechanical fixing by providing a permanent bond
  • Wide operating temperature range: -40°C to +120°C
  • Includes glass beads for a set thickness to be applied
