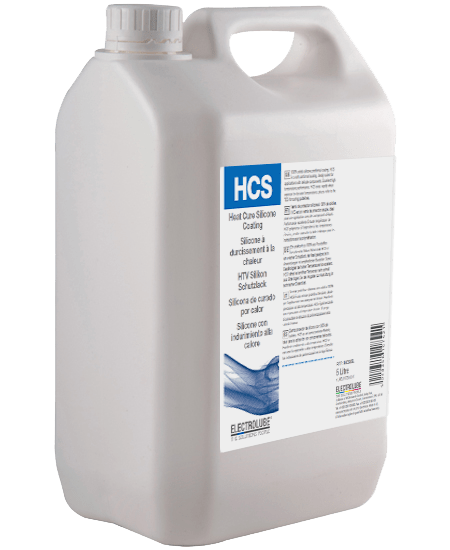

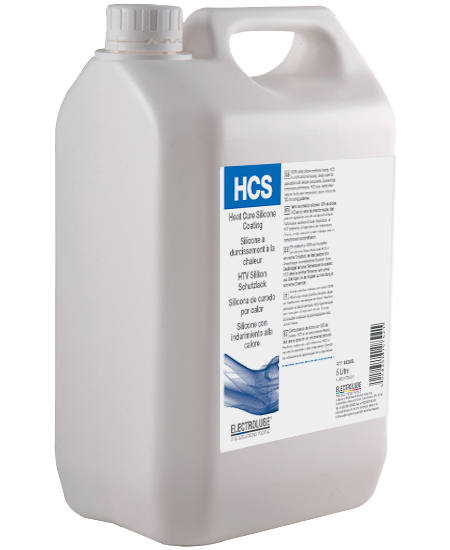

HCS Heat Cure Silicone Conformal Coating Thumbnail

HCS

Heat Cure Silicone Conformal Coating

HCS Heat Cure Silicone Conformal Coating is a fast heat curing, solvent free, silicone conformal coating with formulated to meet the requirements of UL94 V-0.

Product Codes

5L Bulk - HCS05L

Product Description

HCS Heat Cure Silicone conformal coating is a fast curing, solvent free, silicone. With 100% solids it is formulated to meet the requirements of UL94 V-0. It is a low viscosity coating which due to its silicone base is flexible with low stress on components whilst remaining tough enough to withstand abrasion.

It has a thermal fast-cure mechanism, achieving a full cure within just 10 minutes at 105°C. The solvent free formulation also ensures that there is little by-product from the cure maintaining a low odour system.

HCS Heat Cure Silicone conformal coating also offers a wide operating temperature range of -65°C to +200°C which makes it especially suited to applications such as the automotive industry, power electronics or other electronic applications that require high temperature performance.

Key properties

  • Flexible coating, low stress on components
  • Meets requirements of UL94 V-0
  • Fast thermal full-cure (10 mins at 105°C)
  • Virtually no cure by-products, low odour
  • Good adhesion
  • Very wide operating temperature range
  • Good stability at high temperature
  • RoHS Compliant & REACH Compliant
