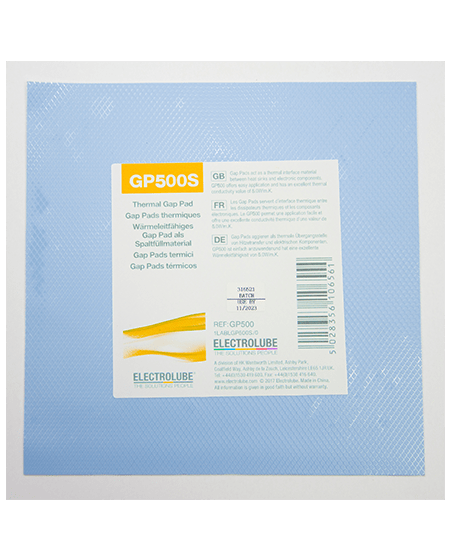

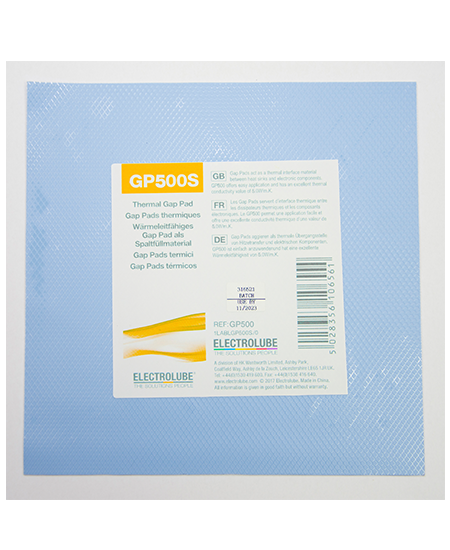

GP500 Thermal Gap Pad Thumbnail

GP500

Thermal Gap Pad

GP500 is a specialist silicone based thermal interface gap pad designed specifically to exhibit a very low thermal resistance value.

Product Codes

200x200x0.5mm - GP500S
200x200x1mm - GP500SL

Product Description

GP500 is a specialist silicone based thermal interface gap pad designed specifically to exhibit a very low thermal resistance value. It comes in a 200x400mm section which can be easily cut down if required and is easy to apply, streamlining production and minimising mess. It’s available in a variety of thicknesses S = 0.5mm SL = 1mm for different applications making it suitable for a wide variety of applications, maintaining an impressive thermal conductivity value of 5W/m.K.

As with any thermal interface material, due to the varied nature of possible applications, we would advise talking to our technical support team to discuss your application prior to making a material choice to ensure the best product for the job is selected.

Key properties

  • 200x200mm Thermal interface material
  • Different thickness available
  • Quick and easy to apply
  • Excellent electrical insulation
  • Wide operating range -50°C - 150°C
  • RoHS Compliant
