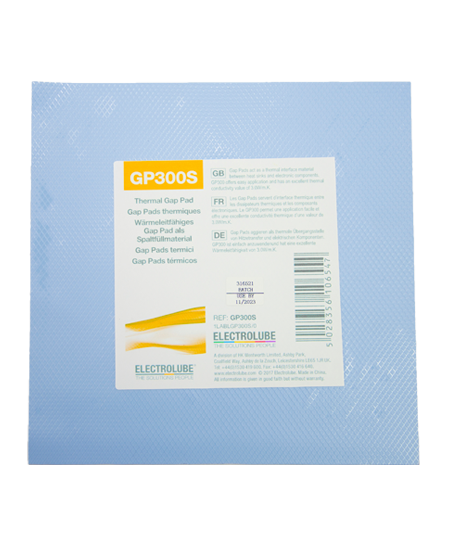

GP300 Thermal Gap Pad Thumbnail

GP300

Thermal Gap Pad

GP300 is a silicone based thermal interface gap pad designed for easy application and good thermal conductivity.

Product Codes

200x200x0.5mm - GP300S
200x200x1mm - GP300SL

Product Description

GP300 is a silicone based thermal interface gap pad designed for easy application and good thermal conductivity. It comes in 200x200mm square sections, which can be cut down to size if required and is available in a variety of thicknesses S = 0.5mm SL = 1mm. As we advise for all thermal interface products, it is best to get in touch with our technical support team in order to ensure the correct material and application method is supplied.

GP300 is suitable for a wide variety of applications due to its high thermal conductivity value of 3W/m.K. It is best suited to applications where the pressure of the contact surface is high, thus ensuring that the material fills all the air pockets in the interface.

Key properties

  • 200x200mm Thermal interface material
  • Different thickness available
  • Quick and easy to apply
  • Excellent electrical insulation
  • Wide operating range -50°C - 160°C
  • RoHS Compliant
