FSC Flexible Silicone Conformal Coating Thumbnail

FSC

Flexible Silicone Conformal Coating

FSC is a specialist conformal coating which has been formulated based on a high-quality silicone resin.

Product Codes

15ml Bottle - FSC15ML
400ml Aerosol - FSC400

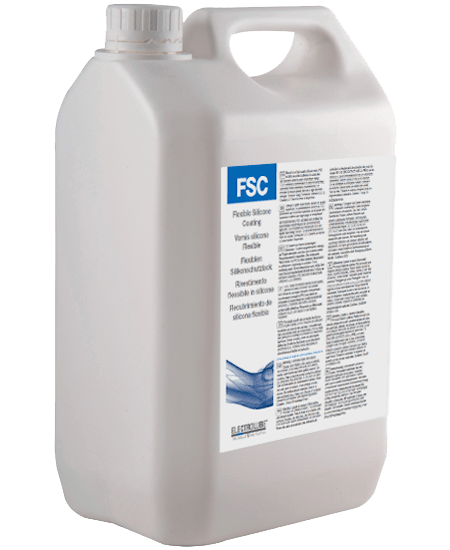

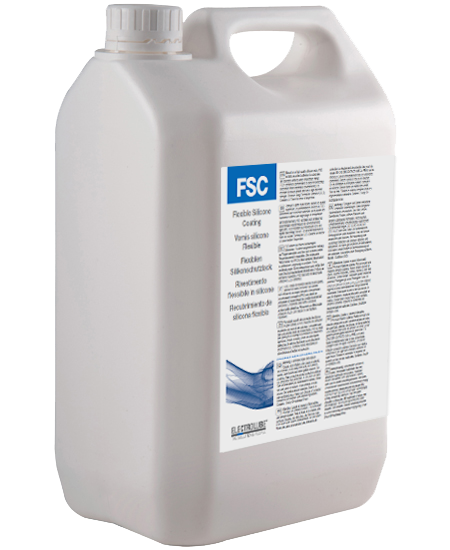

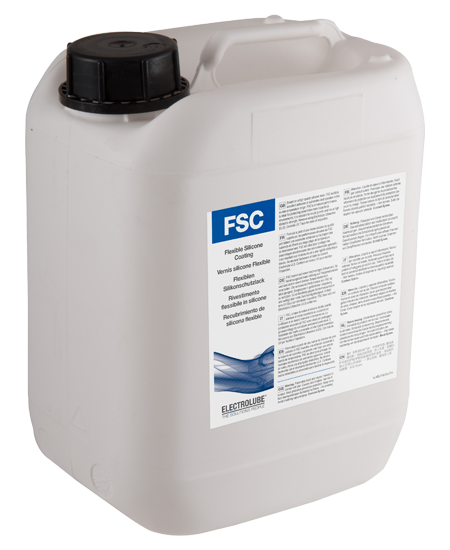

5L Bulk - FSC05L

Product Description

FSC Flexible silicone conformal coating is a specialist coating which has been formulated based on a high quality silicone resin. It is highly flexible for delicate components, while it exhibits excellent adhesion to a wide variety of substrates and operates within a wide temperature range. It’s an ideal choice for humid environments offering excellent protection from moisture.

It can be sprayed, dipped or brushed and is fast drying, allowing for efficient production while it also contains a UV trace, which allows inspection of the PCB after coating to ensure complete and even coverage. FSC is widely used through the rail industry, but is suitable for a rage of high end applications. For full product details including test results please refer to the TDS below. If you still require further information please don’t hesitate to get in touch.

We also have available FSCP (plus) which offers enhanced adhesion to a variety of substrates, including solder resists with low surface energy, for full details see the TDS below.

Key properties

  • Flexible
  • Transparent
  • Very high surface insulation resistance
  • Wide operating temperature range
  • High level of protection offered in humid environments
  • May be removed with solvents such as Ultrasolve (ULS)
  • May be soldered through for rework
  • IEC 61086-2IPC-CC-830
  • MIL-I-46058-CUL94V-1
  • RoHS Compliant
