ER1450 White Low Viscosity Epoxy Potting Compound Thumbnail

ER1450

White Low Viscosity Epoxy Potting Compound

ER1450 electronic potting and encapsulation compounds is a fast curing two part epoxy resin of low viscosity. ER1450 cures as an opaque white resin, while ER1451 exhibits the same properties but has an optically clear finish.

Product Codes

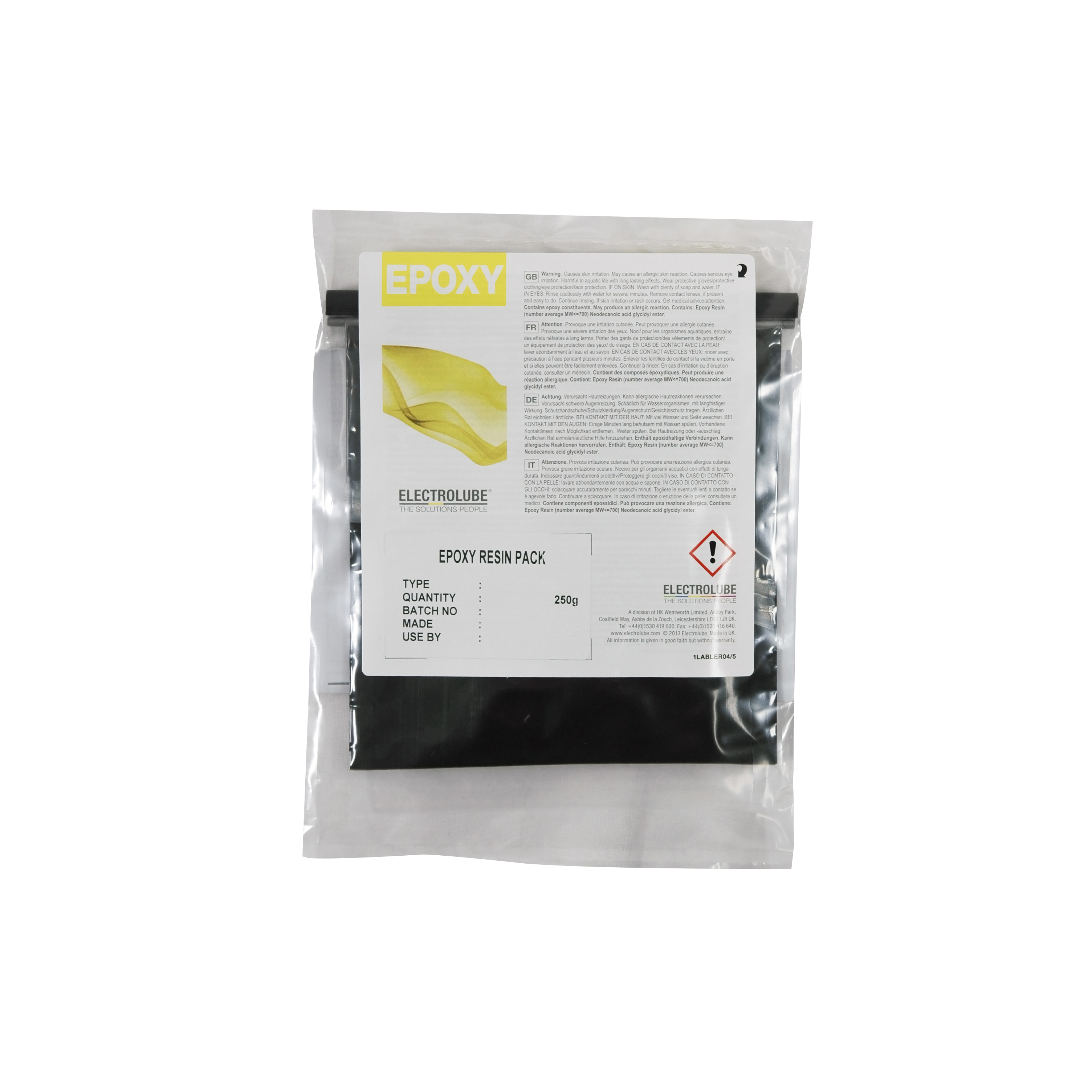

250g Resin Pack - ER1450RP250G
5kg Kit - ER1450K5K

Product Description

ER1450 low viscosity epoxy potting compound and encapsulation resin is a fast curing two part material which cures as opaque white. Based on the same chemistry as ER1451 (Transparent).

Both ER1450 and ER1451 resins are tough but fast curing systems which show good results through thermal cycling and offering stability in applications with variable temperature.  They maintain good electrical properties and a good adhesion to a range of substrates. ER1450 is a low viscosity resin making it ideal for encapsulating small components and units such as radio frequency transmitters used in automotive or aerospace applications.

For more information please see the product TDS or contact our technical support team to discuss your application requirements in more detail.

Key properties

  • Excellent water resistance
  • Excellent adhesive properties
  • Good electrical properties
  • Very low viscosity
  • Wide operating temperature range (-50 °C to 150 °C)
  • Fast curing resin
  • White Finish
  • RoHS Compliant
