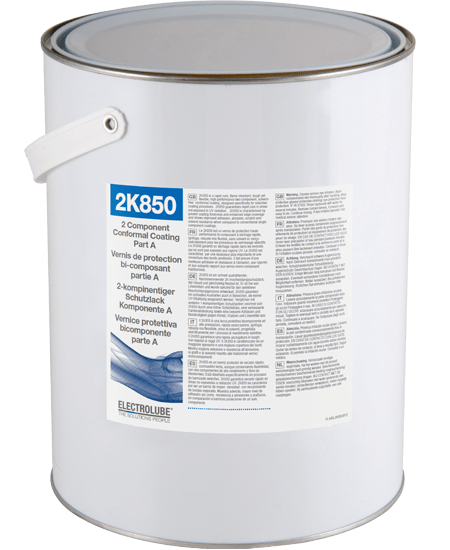

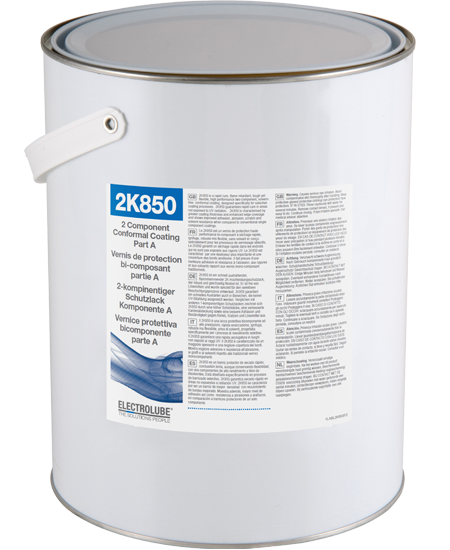

2K850 Two Part UV Cure Conformal Coating Thumbnail

2K850

Two Part UV Cure Conformal Coating

2K850 is the latest addition to the 2K range of solvent-free two-part polyurethane conformal coatings.

Product Codes

5L Part A * - 2K8505L

* Requires 2KPB as reaction agent

Product Description

2K850 UV cure conformal coating is the latest addition to the 2K range of solvent-free two-part polyurethane conformal coatings. Using an innovative technology to combine the 2K technology with a UV cure mechanism 2K850 utilises a faster processing time while still offering superb levels of protection. In addition to the UV cure, 2K850 has a consistent and reliable secondary chemical cure, even in shadow areas. In comparison to other single part UV conformal coatings, 2K850 is extremely efficient with a tack-free touch dry time of just a few minutes, and a full cure of just 24 hours, compared to the industry moisture cure average of about 8-14+ days, or requiring an additional thermal process of 1 hour curing at 120°C.

2K850 also offers several other benefits over more traditional UV cure conformal coatings, with improved edge coverage giving more effective protection against harsh environments, and vastly improved resistance to cracking during thermal shock cycling.

As with the other 2K range of coatings, 2K850 has been carefully formulated to combine the protection and properties of an encapsulation resin, while keeping the ease of application of a conformal coating. Applied using specially designed applicators from both PVA (VPX-2KS) and Nordson Asymtek (Latest in the AM Range) on selective coating machines, it is applied more thickly than the average coating (200-400μm). 2K850 provides excellent edge coverage while its flexibility offers protection even around delicate components and over component edges.

Additionally Electrolube’s 2K range, including 2K850 are hydrophobic coatings, giving excellent water and moisture /condensation protection including salt mist. This makes it an excellent choice for automotive, aerospace and other tough electronic applications exposed to hash conditions. To read more about this please see our article in the knowledge centre.

*Two part conformal coating system requires 2K850A5L and 2KPB0 reaction agent. Please refer to the product TDS for recommended mix ratios

Key properties

  • UV cure two-part conformal coating
  • Efficient & reliable, fast chemical cure - even in shadow areas
  • Highly flexible coating, low stress on components
  • Excellent coverage, even over difficult geometries
  • Hydrophobic; demonstrates excellent water-immersion, salt mist and condensation resistance
  • Good solvent resistance
  • Good abrasion resistance
  • Meets requirements of IPC-CC-830C, MIL-I-46058C, IEC 61086
  • Meets BMW Group Standard requirement GS95011-5
  • RoHS Compliant & REACH Compliant
