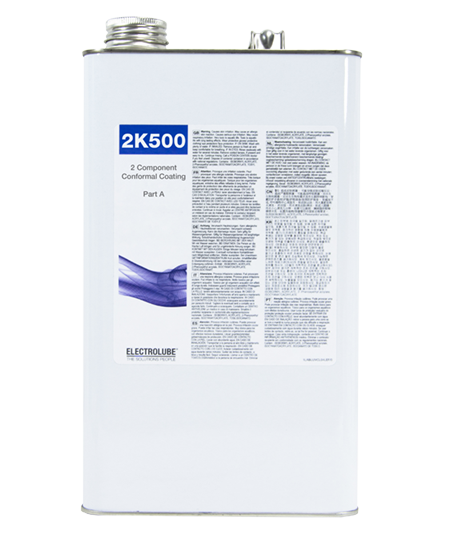

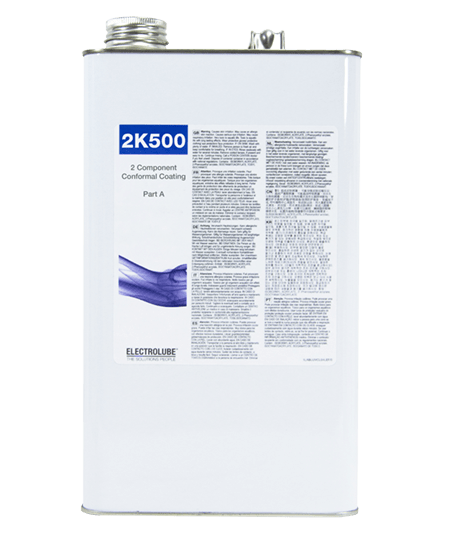

2K500 Two Part Abrasion Reisitant Conformal Coating Thumbnail

2K500

Two Part Abrasion Reisitant Conformal Coating

Abrasion resistant and optically clear two part conformal coating which combines the best properties of a resin with those of a conformal coating. Ideal for LED applications.

Product Codes

5L Part A* - 2K5005L

*Requires 2KPB0 Reaction Agent

Product Description

2K500 abrasion reisitant conformal coating is a hard, two-part polyurethane conformal coating system which provides the best protection properties of an encapsulation resin, with the ease of application of a conformal coating. It can be easily applied to provide excellent edge coverage, even areas with difficult geometries, this allows the highest levels of protection even in harsh environments.  2K500 is optically clear and maintains this clarity even after prolonged exposure to UV light making it a good choice to protect LED boards. It is also more abrasion resistant than 2K300  so it more suited to exposed applications.

As with the other 2K range of conformal coatings 2K500 is a hydrophobic coating which gives excellent water and moisture protection including salt mists making it an excellent choice for automotive electronics as well as other tough outdoor applications. Read our Article on comparisons verses traditional coatings for more info.

2K500 is applied using selective coating machines from PVA (using VPX-2KS) and Nordson Asymtek (using the latest in the AM range).

*Two Part System requires 2K500 as Part A and 2kpb0 as reaction agent, please refer to the product TDS for recommended mix ratios.

Key properties

  • Two-part conformal coating
  • Wide operating temperature range
  • Good abrasion resistance
  • Excellent thermal shock performance
  • Maintains good clarity even when exposed to UV light
  • Excellent coverage, even over difficult geometries
  • IPC-CC-830 Approval
  • Meets BMW Group Standard requirement GS95011-5
  • REACH Compliant & RoHS Compliant
