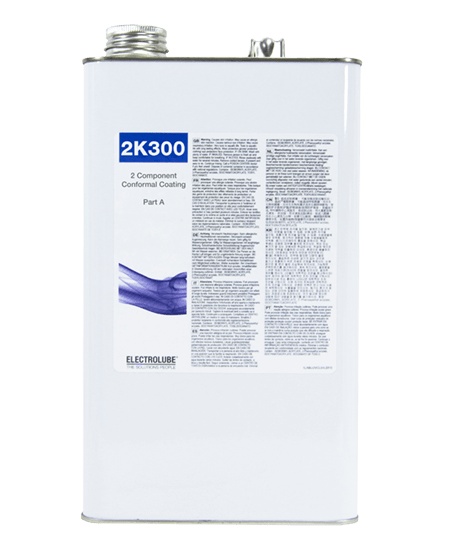

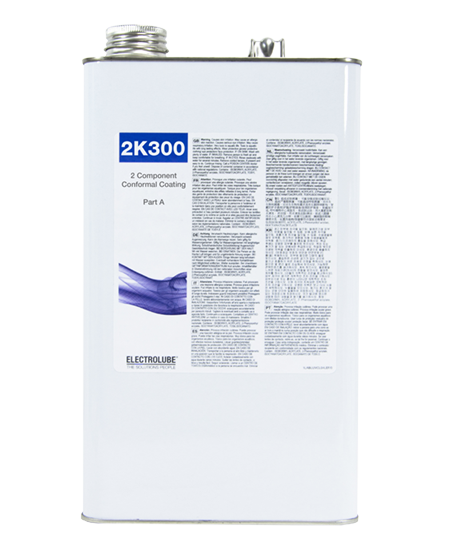

2K300 Two Part High Temperature Conformal Coating Thumbnail

2K300

Two Part High Temperature Conformal Coating

2K300 is a highly elastic, solvent-free two-part polyurethane conformal coating with enhanced thermal performance.

Product Codes

Sample Kit - 2K300KIT
5L Part A* - 2K3005L

*Requires 2KPB0

Product Description

2K300 high temperature conformal coating is a highly elastic, solvent-free two-part polyurethane conformal coating. It has been carefully formulated to combine the best protection and properties of a resin, while keeping the ease of application and cost effectivness of a conformal coating. Applied more thickly than the average coating, it provides excellent edge coverage, even in tight spaces while its extreme flexibility offers protection even around delicate components.

The 2K Range of coatings can be applied using selective coating machines such as PVA using the specially adapted part VPX-2KS and Nordson Asymtek using the latest in the AM range.

It displays enhanced thermal performance compared to other 2K products, with an operating range of -65 to +150°C while still offering good chemical resistance.

As with the other 2K range of conformal coatings 2K350 is a hydrophobic coating which gives excellent water and moisture protection including salt mists making it an excellent choice for automotive electronics as well as other tough outdoor applications. Read our Article on comparisons verses traditional coatings for more info.

2K300 is available in bulk, however we have also developed a unique sample kit for the prototyping and validation process, eliminating the need for specialist machine equipment or machine down time.

*Two Part System requires 2K300 as Part A and 2KPB0 as reaction agent, please refer to the product TDS for recommended mix ratios.

Key properties

  • Two-part conformal coating
  • Unique Sample-Kit available
  • Enhanced operating temperature range
  • Highly flexible coating, low stress on components
  • Hydrophobic; demonstrates excellent water-immersion, salt mist and condensation resistance
  • Good solvent resistance
  • Excellent coverage, even over difficult geometries
  • Meets requirements of IPC-CC-830C, MIL-I-46058C, IEC 61086
  • Meets BMW Group Standard requirement GS95011-5
  • REACH Compliant & RoHS Compliant
